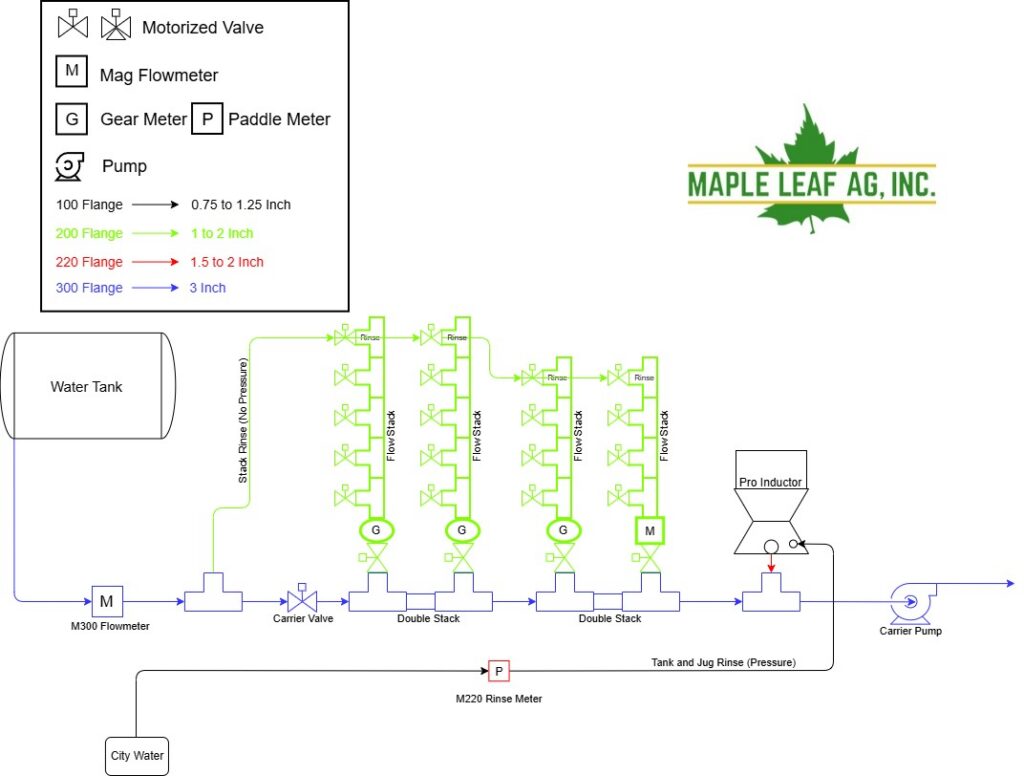

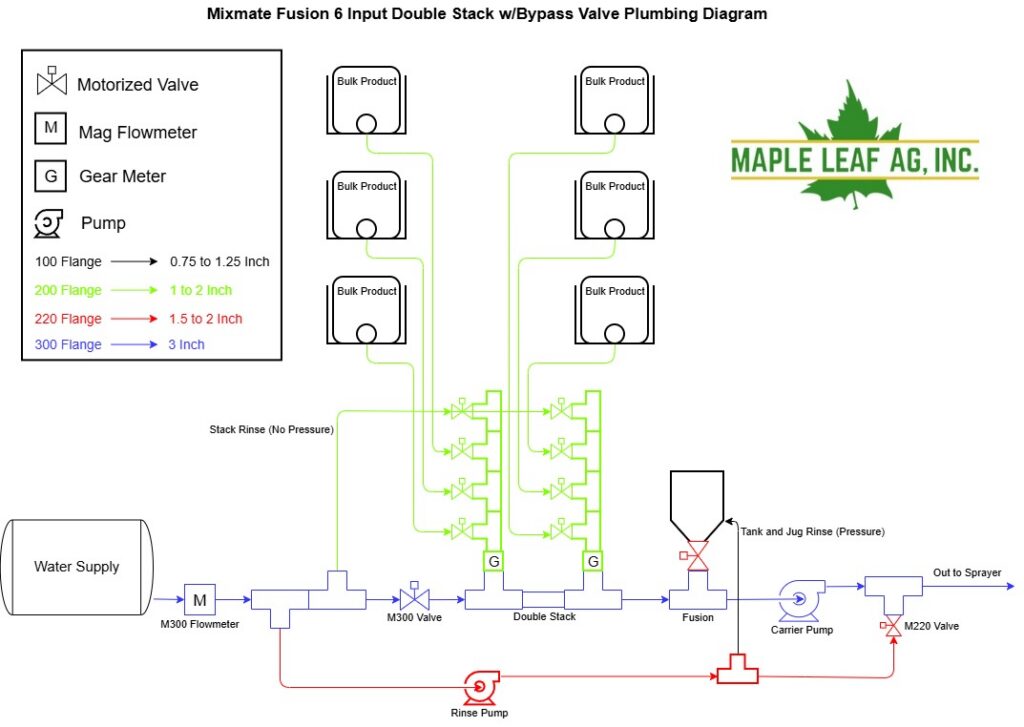

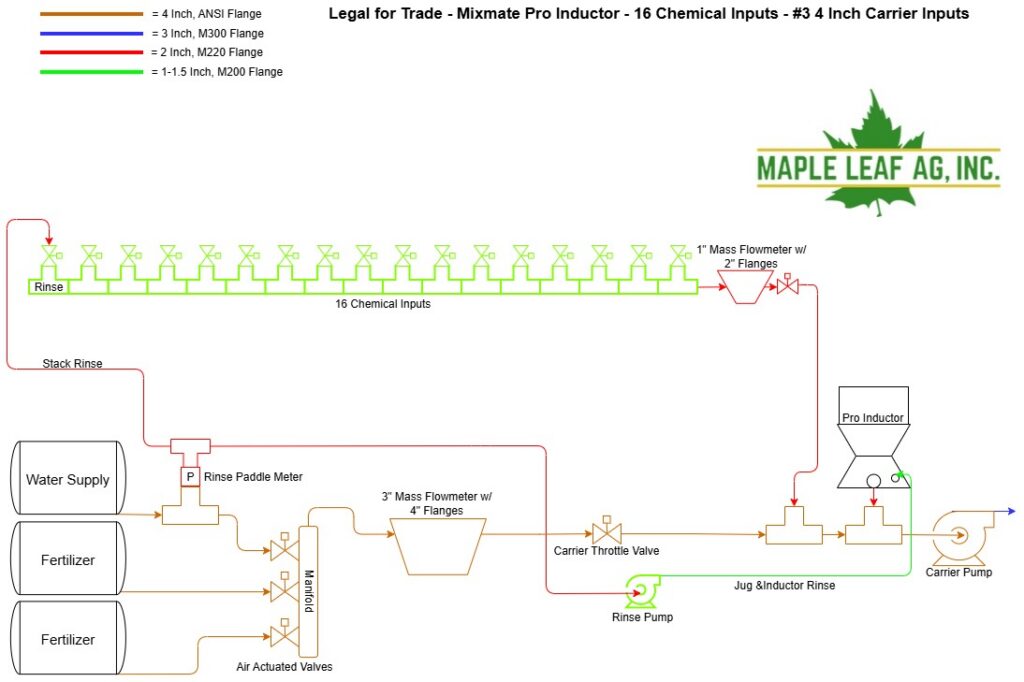

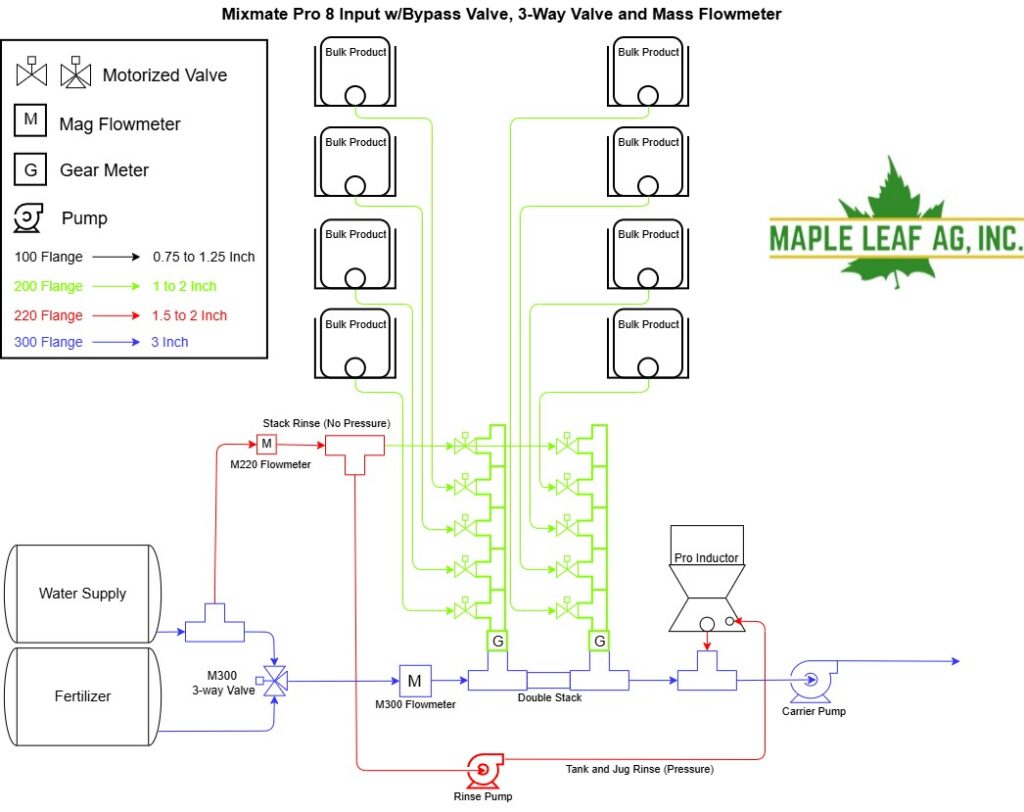

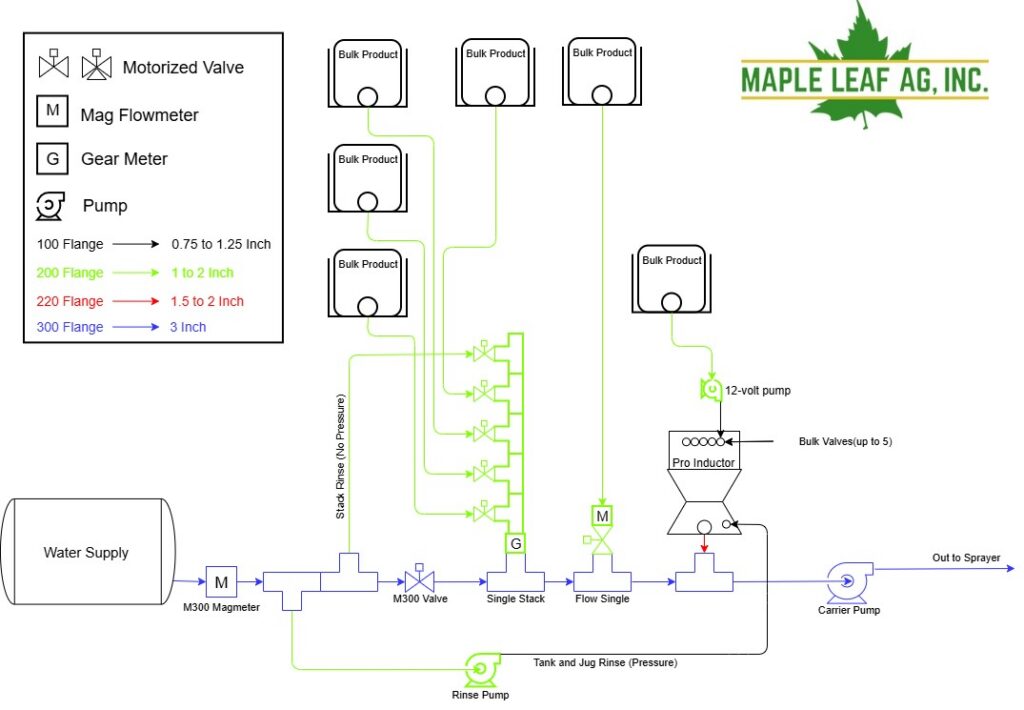

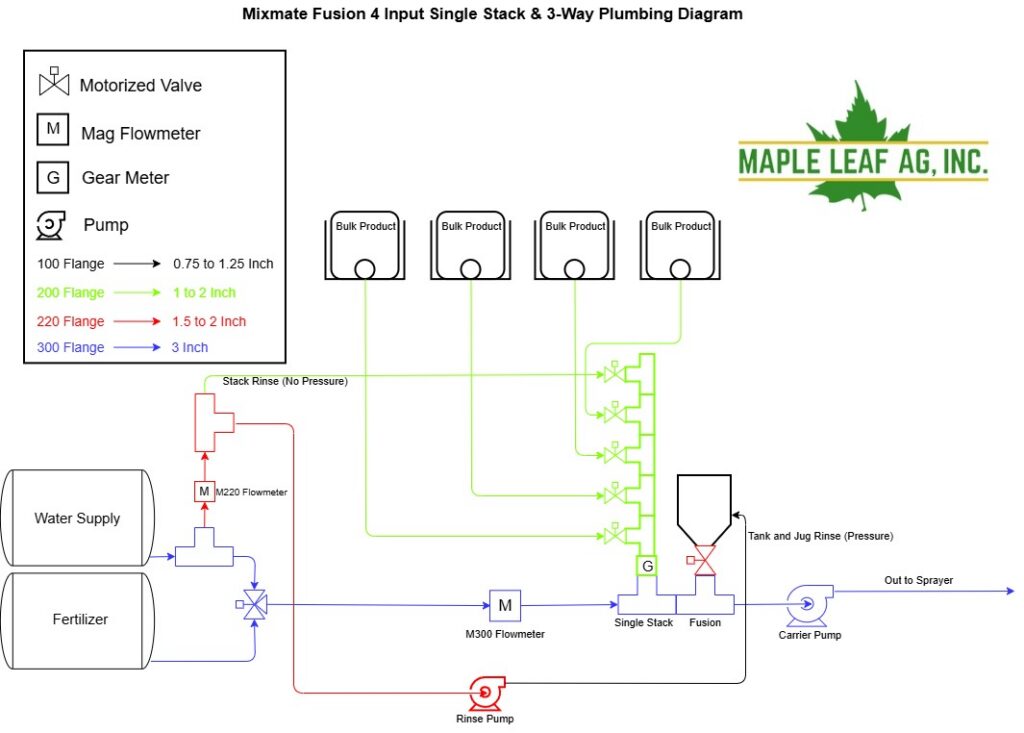

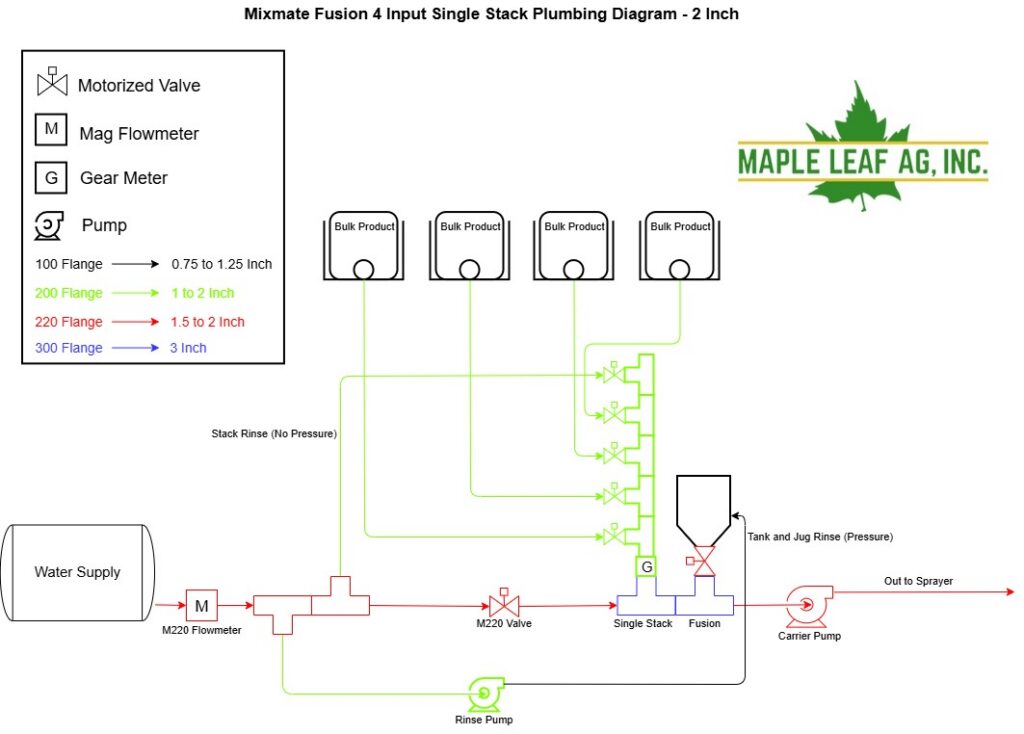

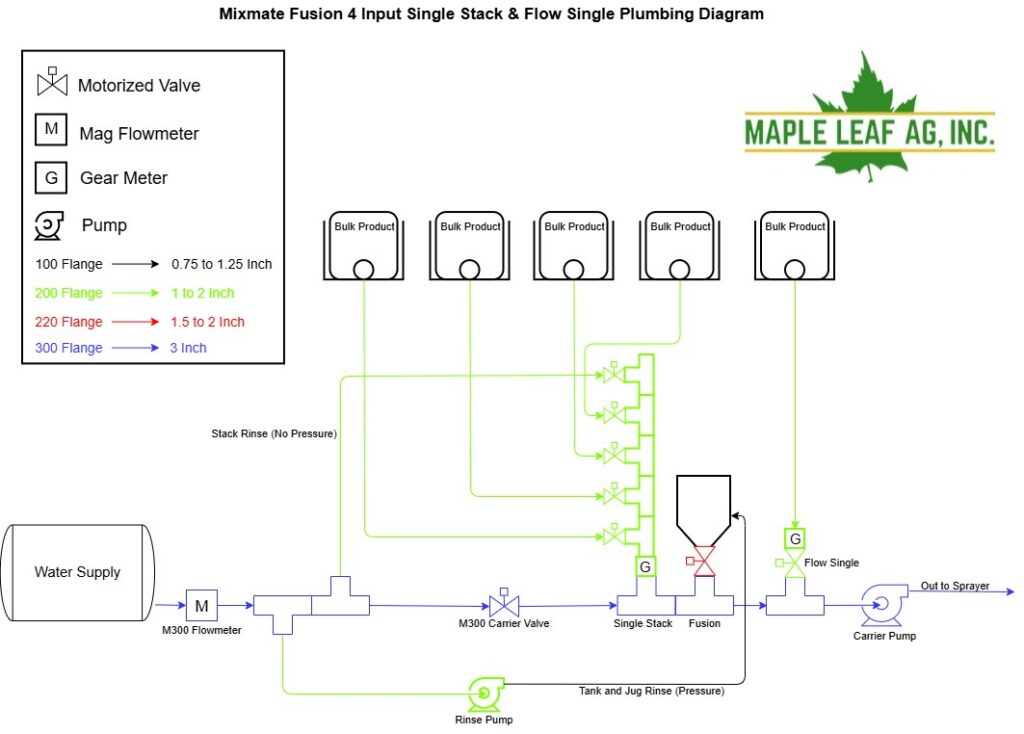

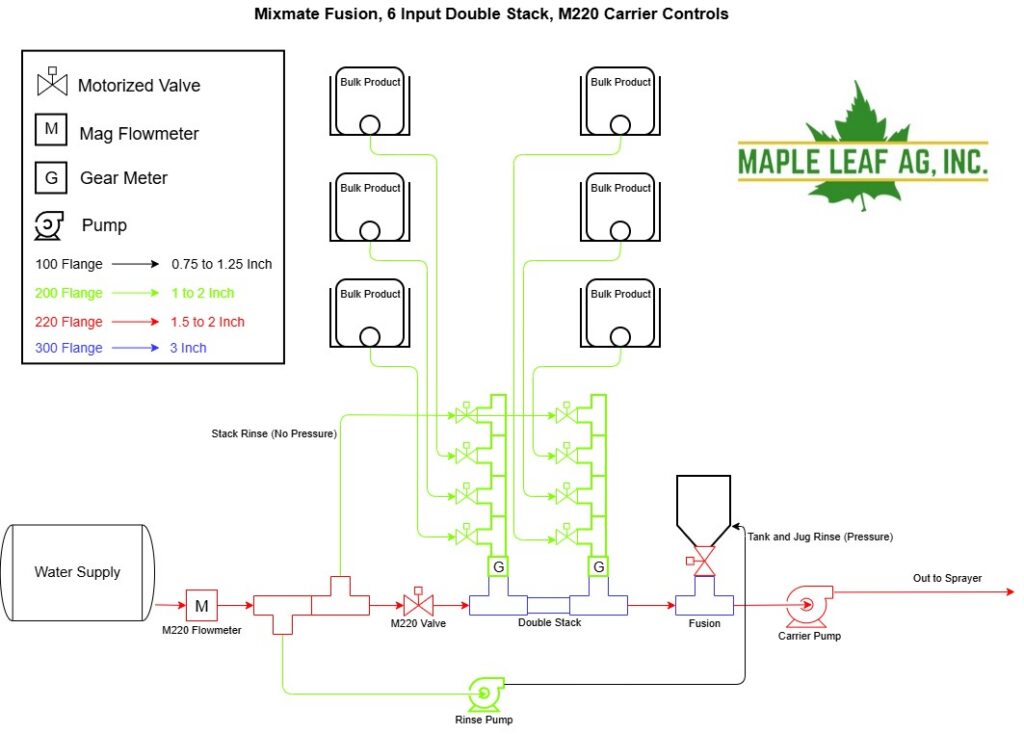

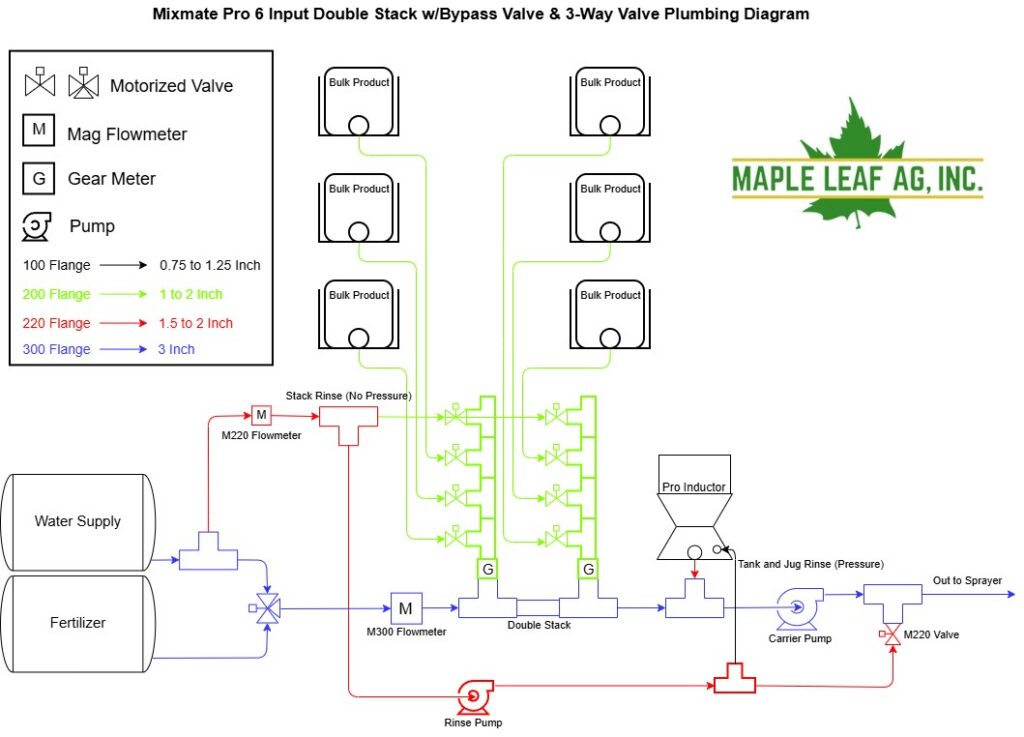

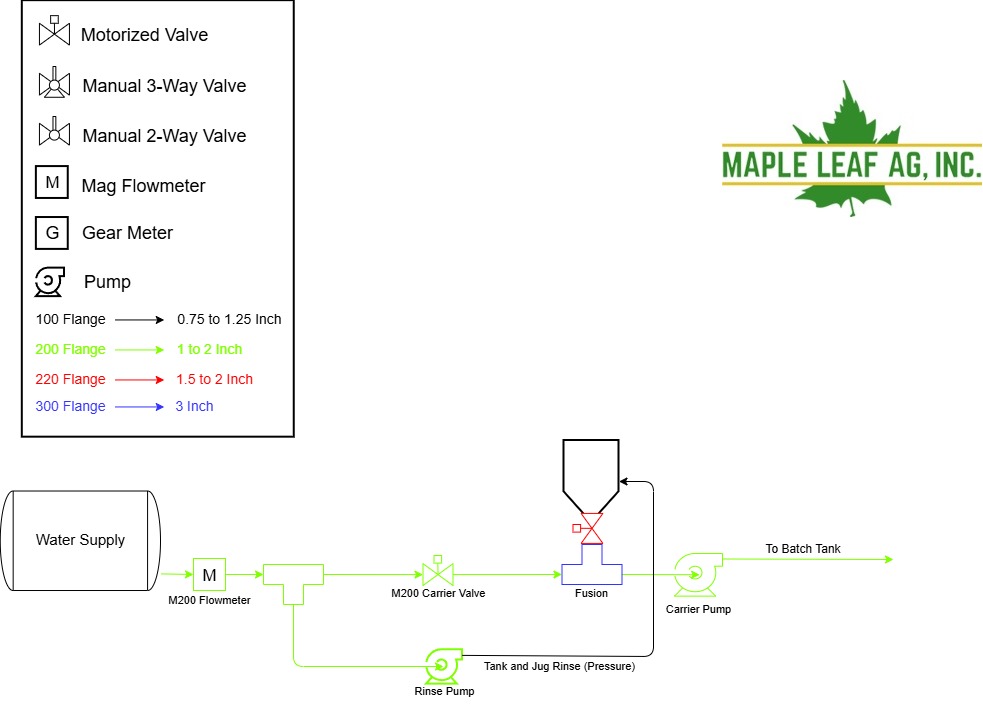

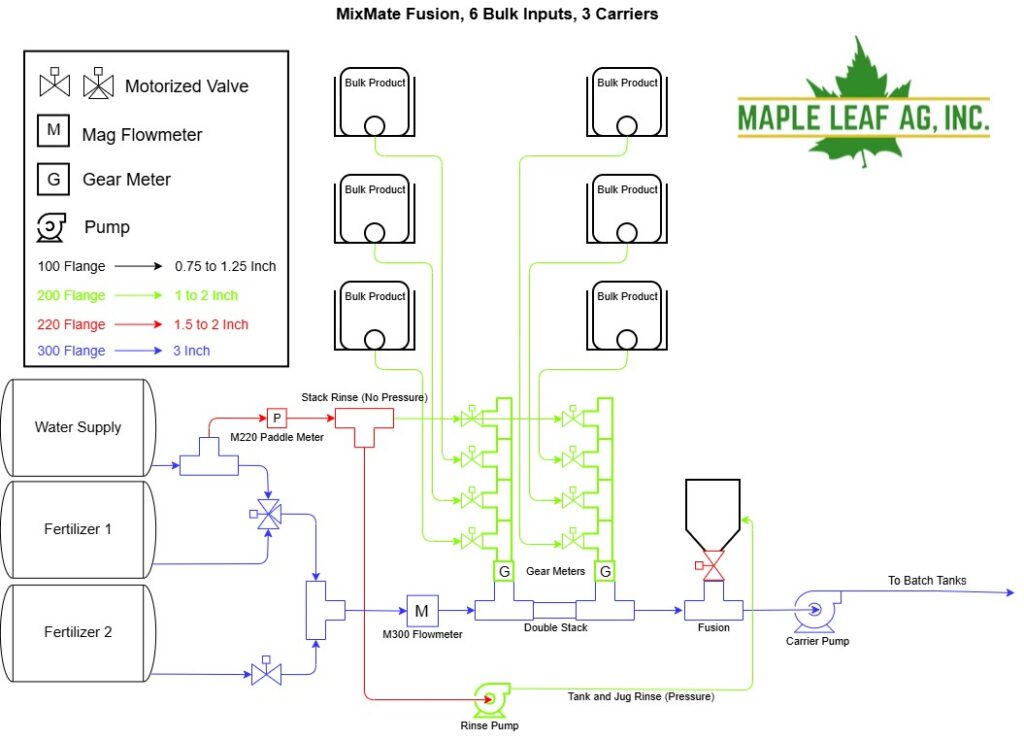

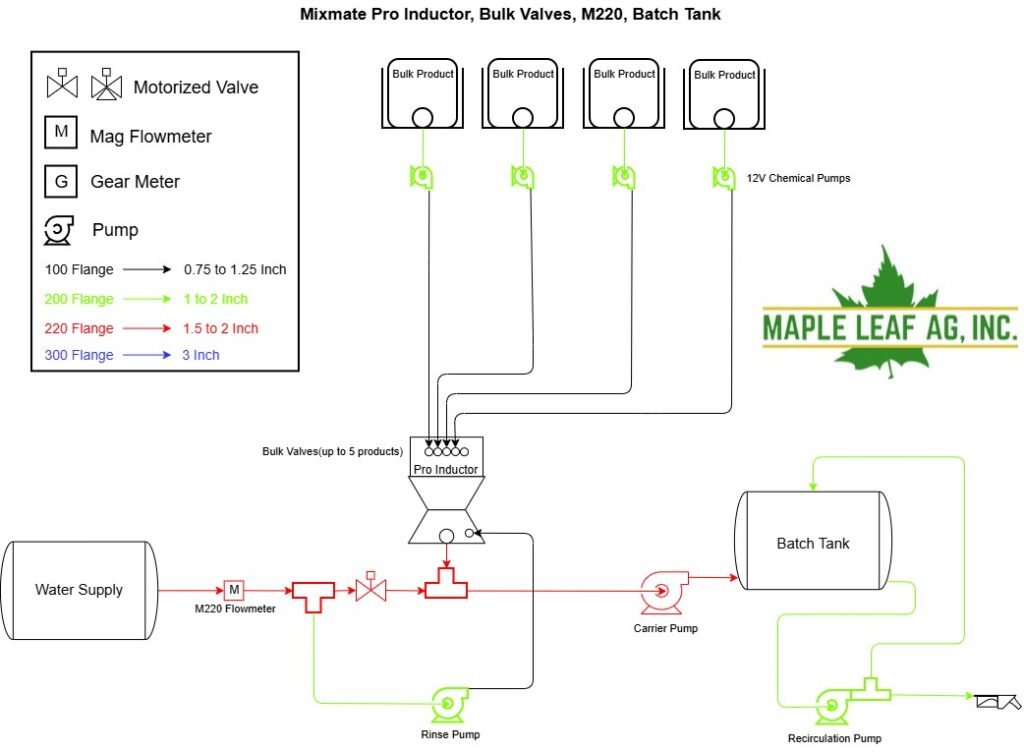

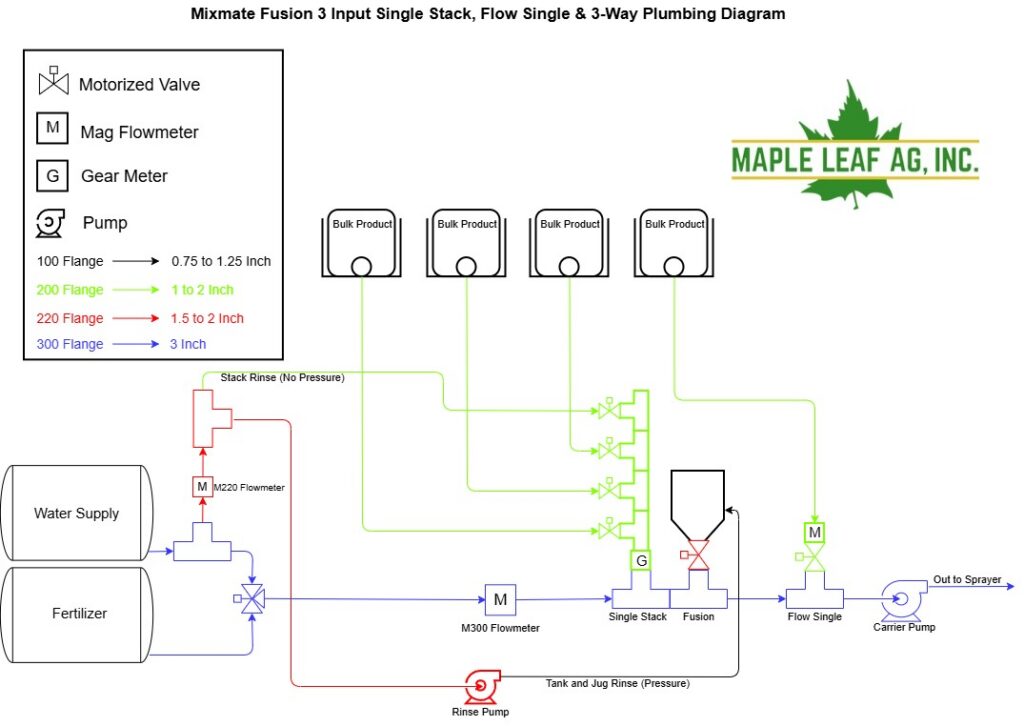

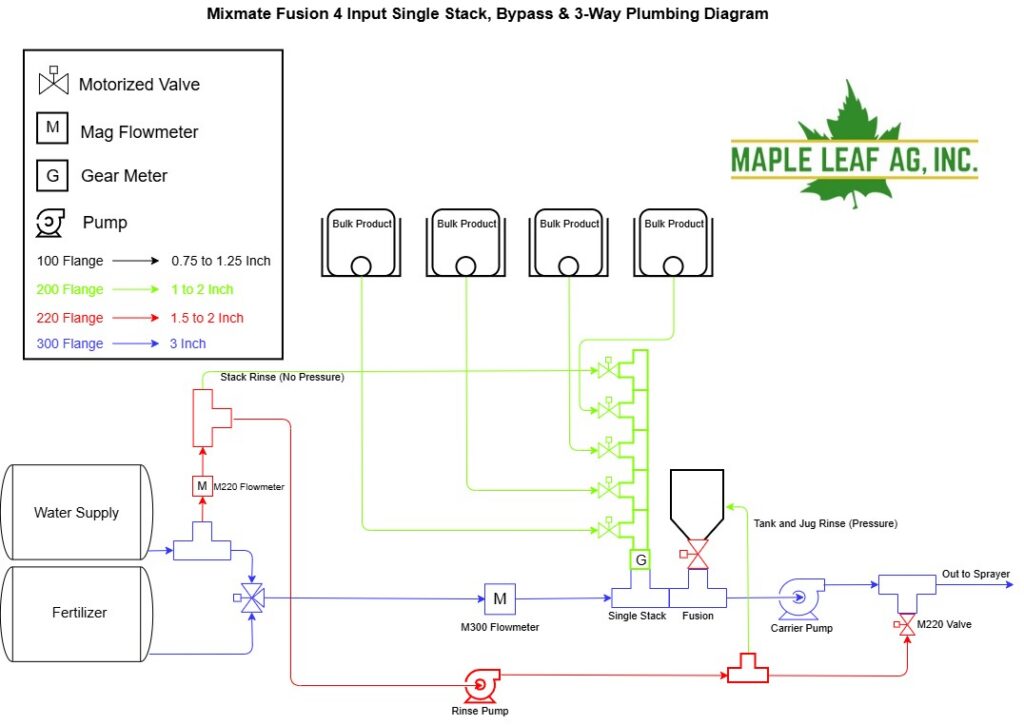

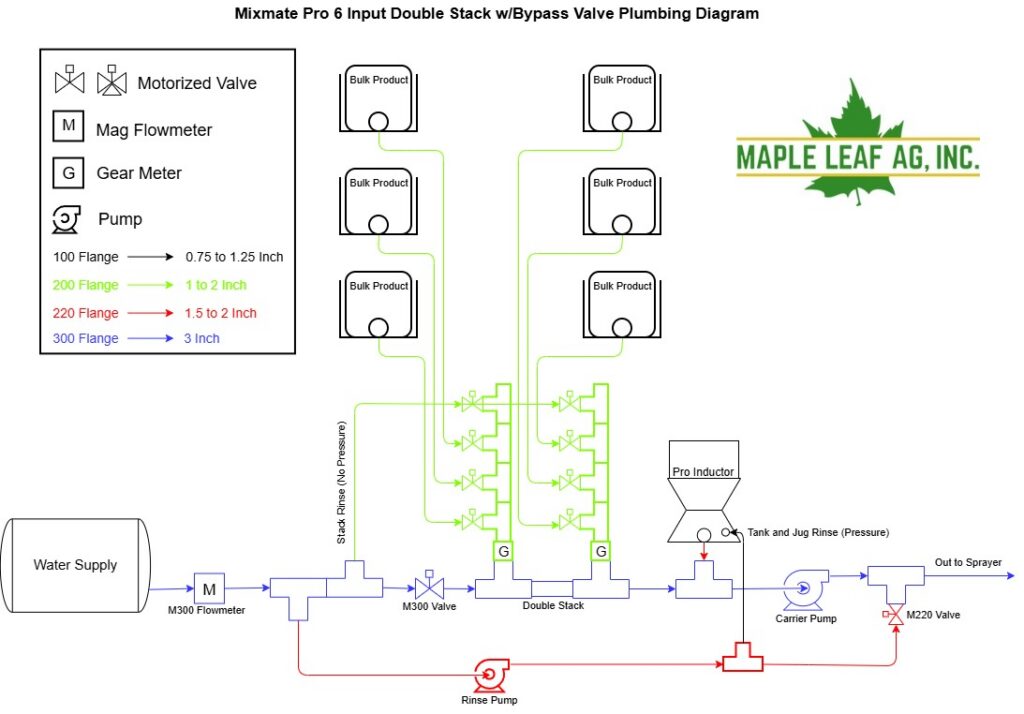

Plumbing Diagrams

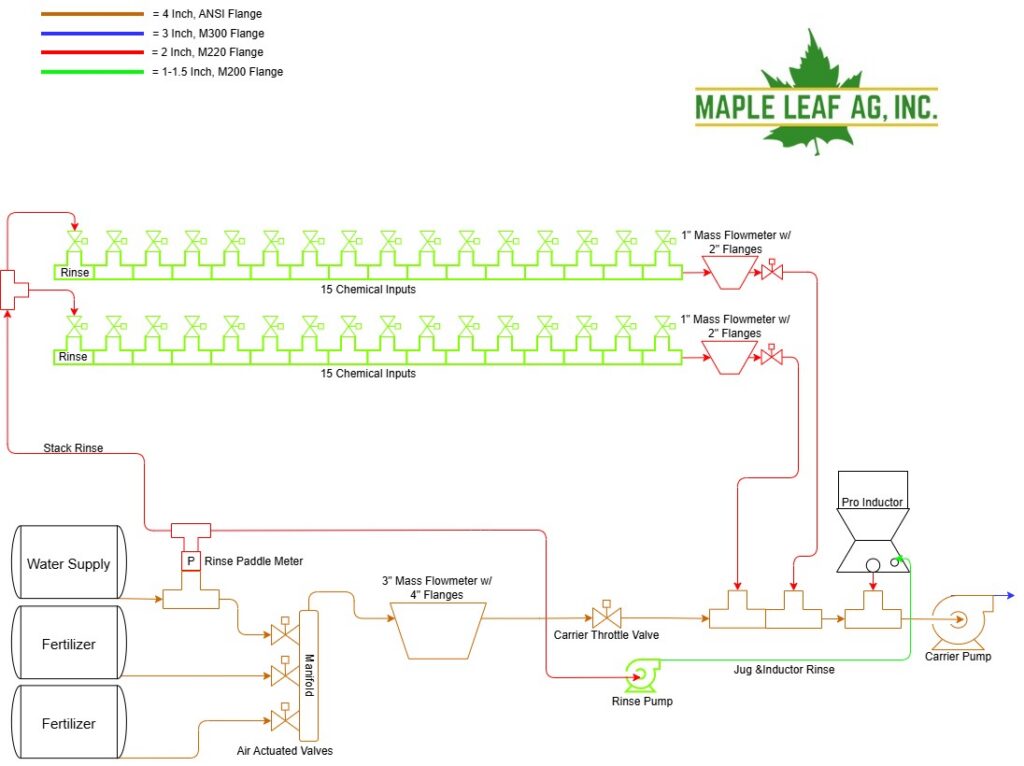

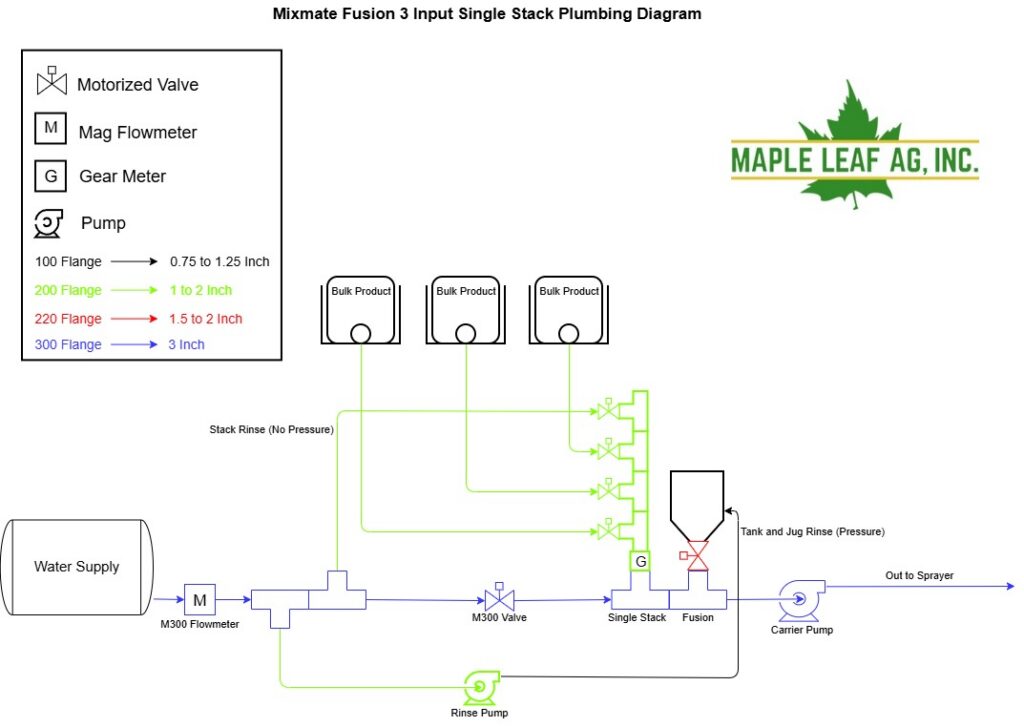

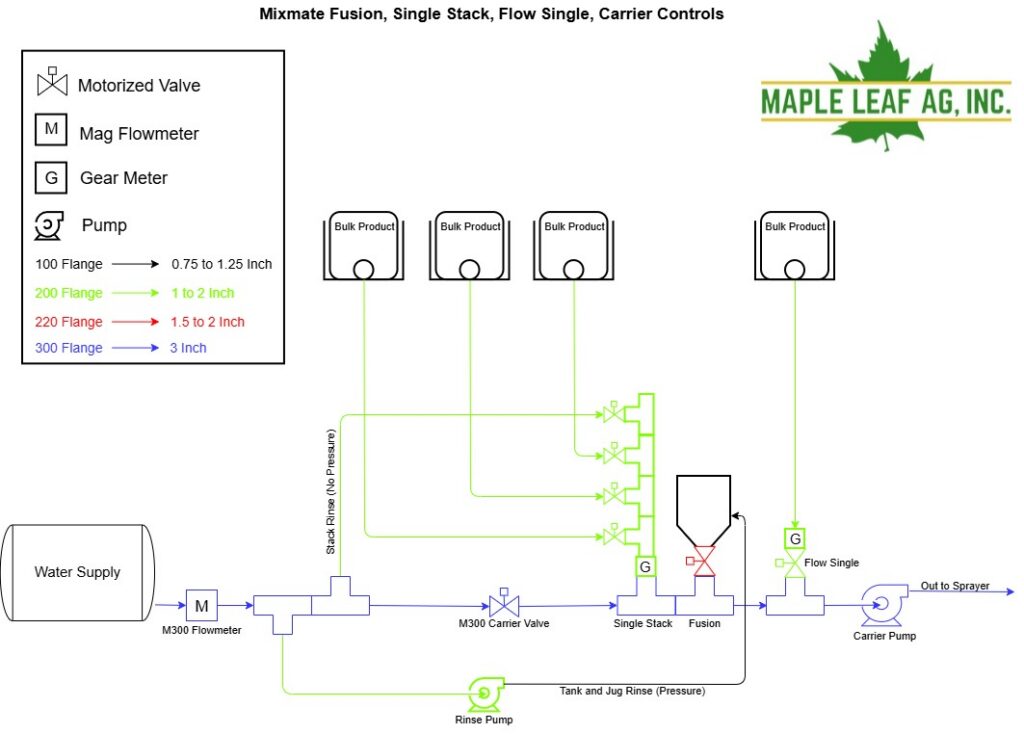

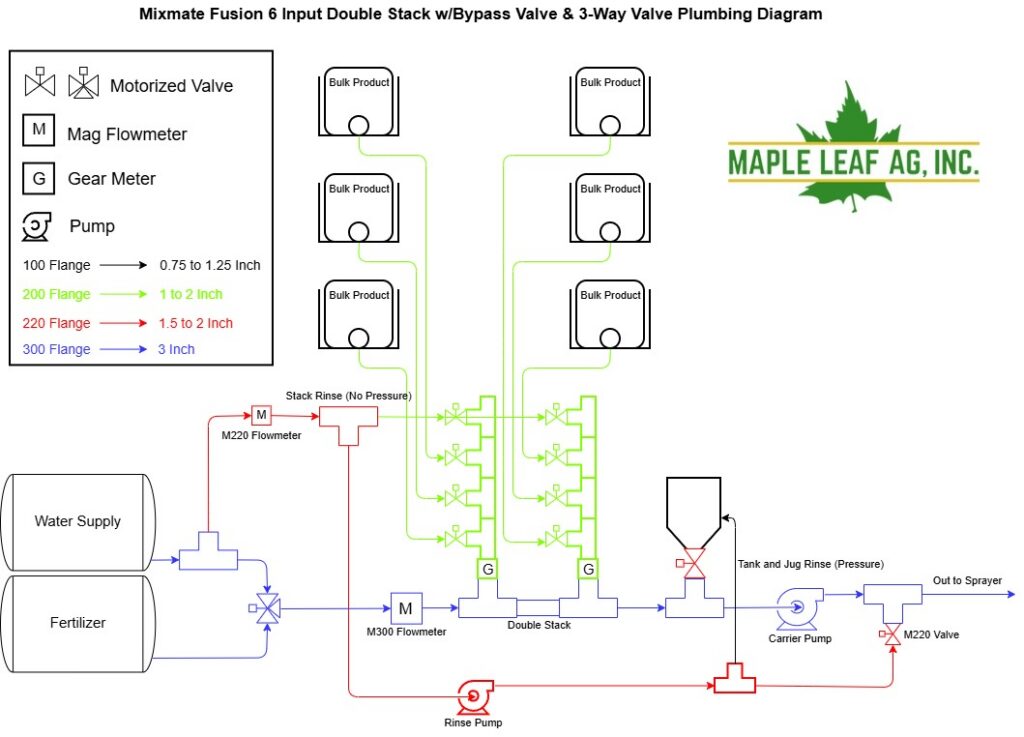

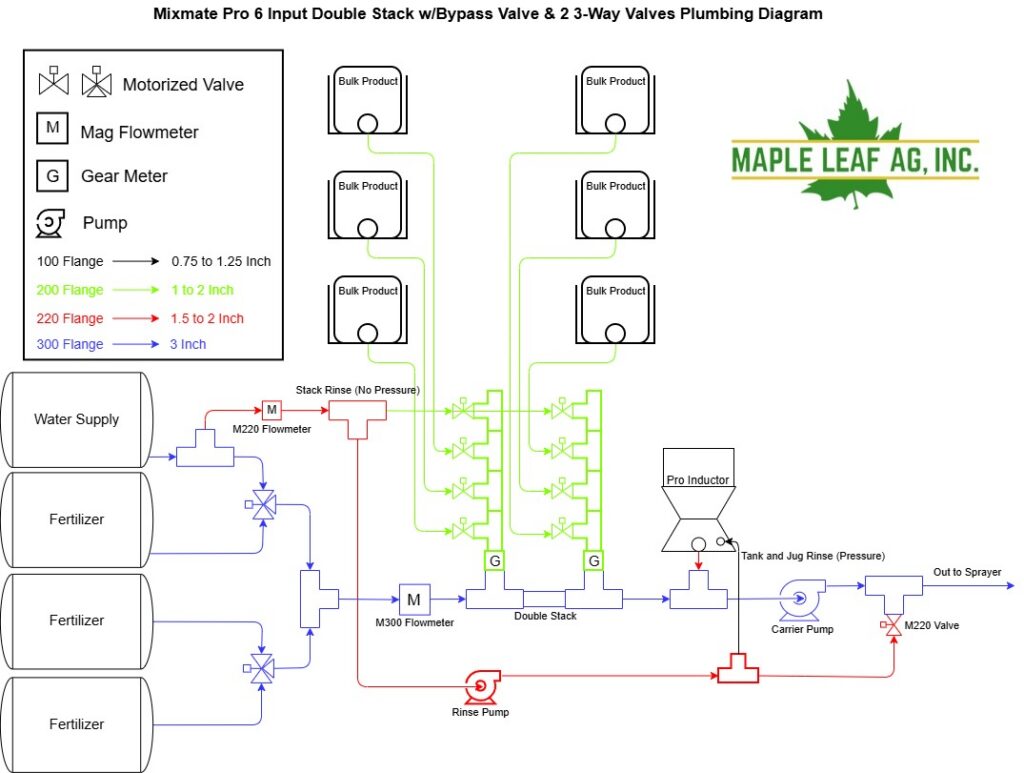

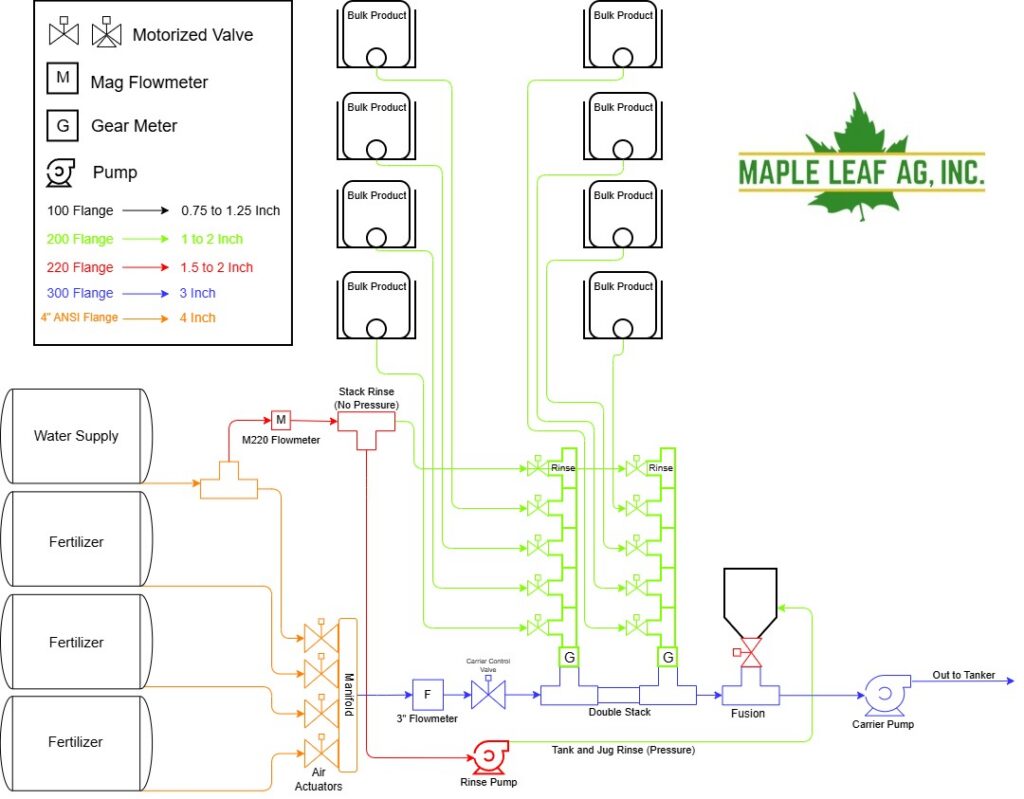

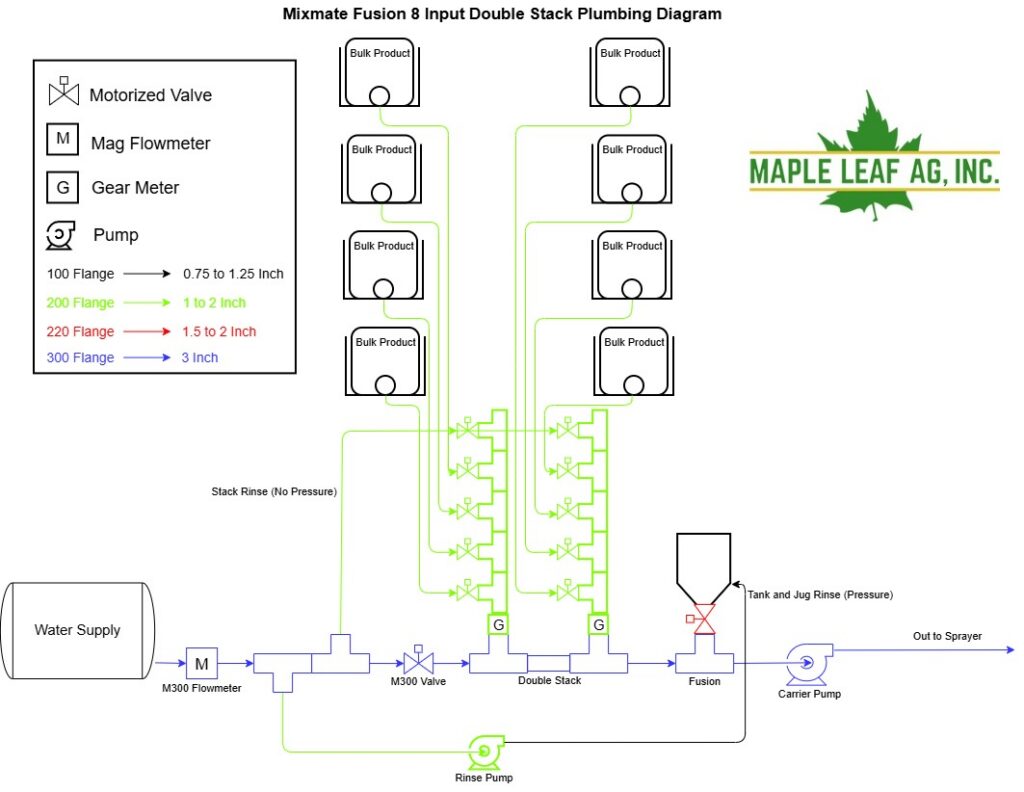

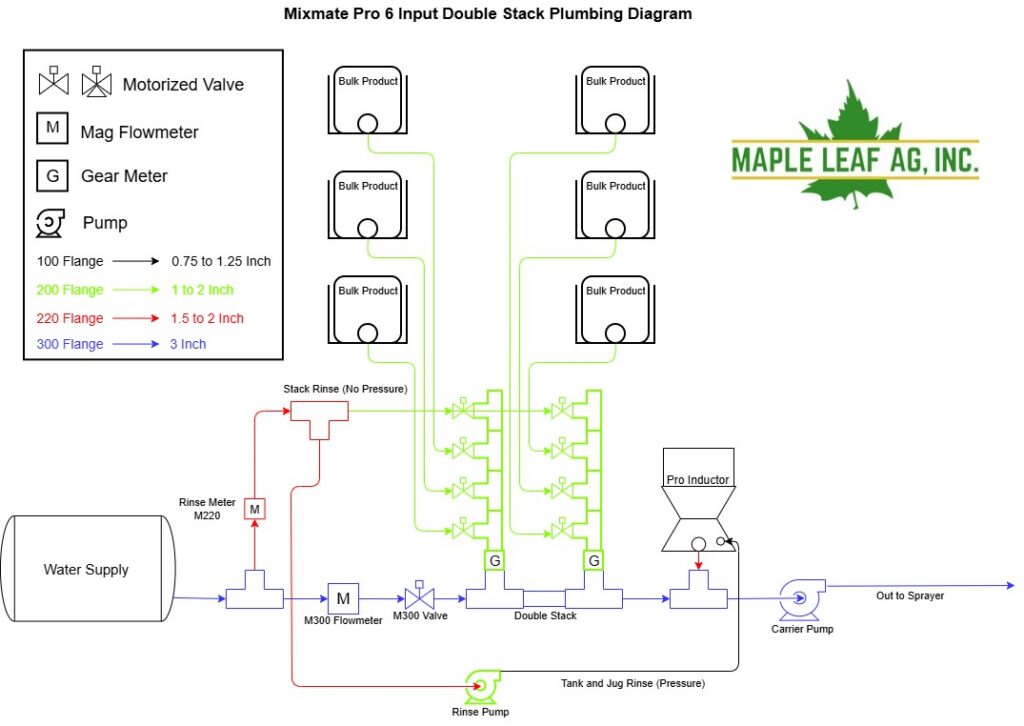

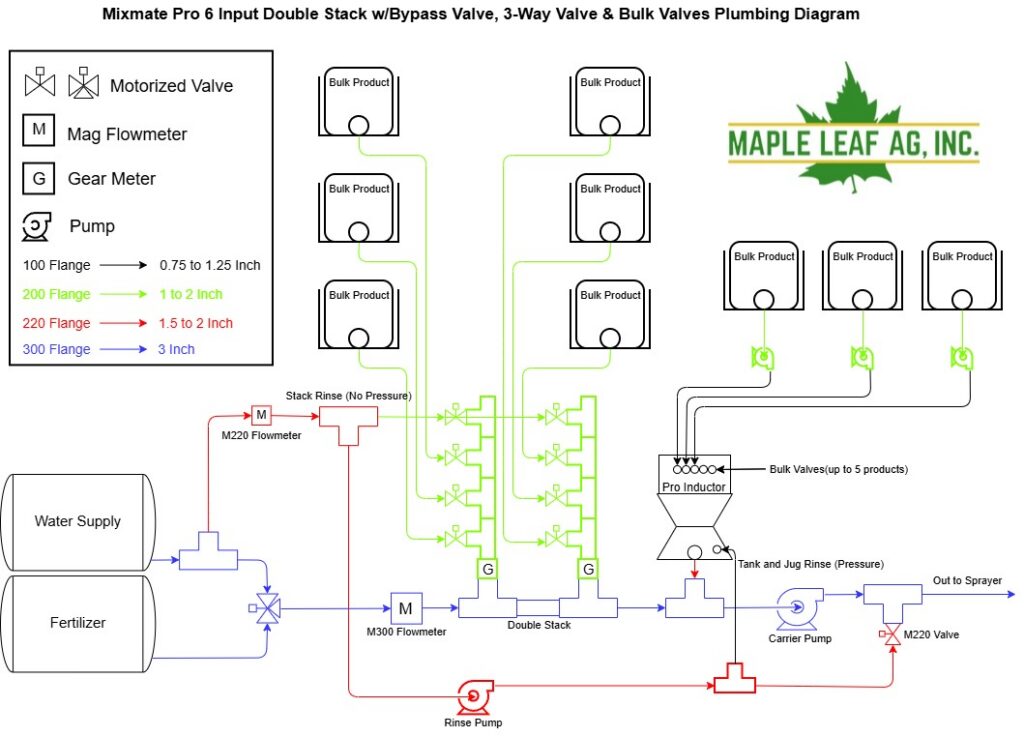

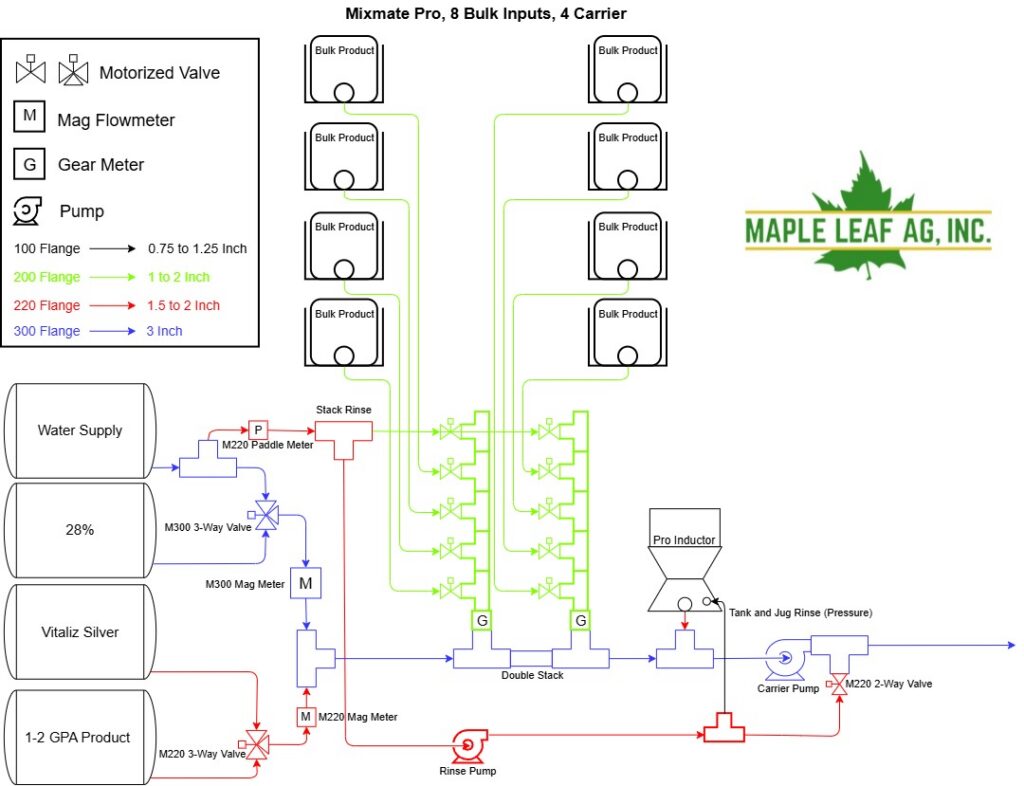

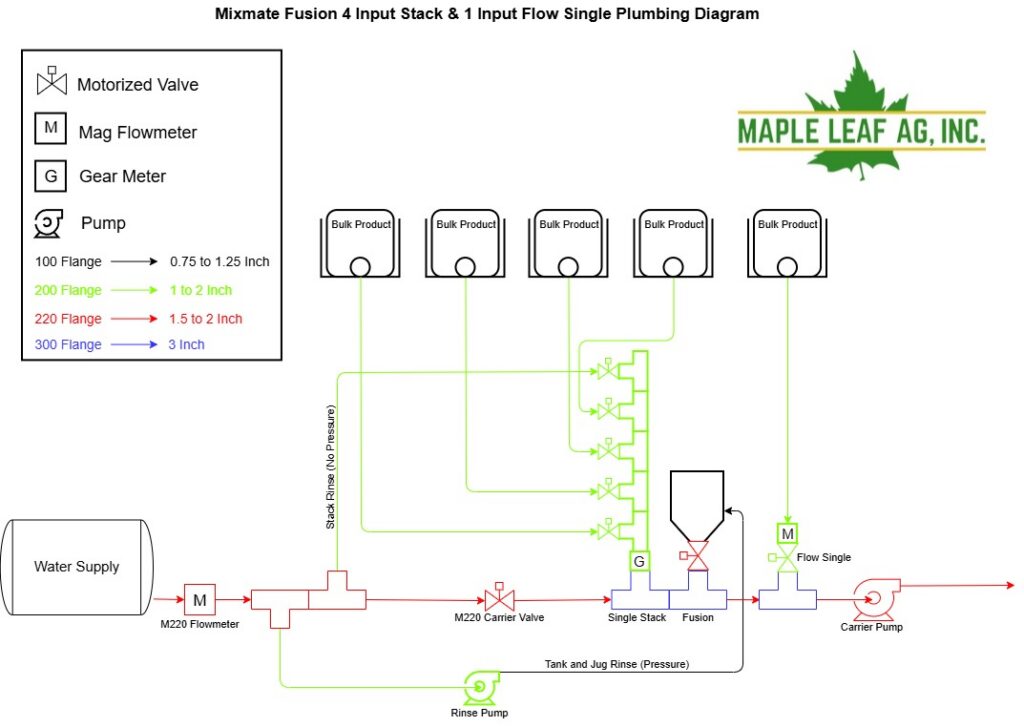

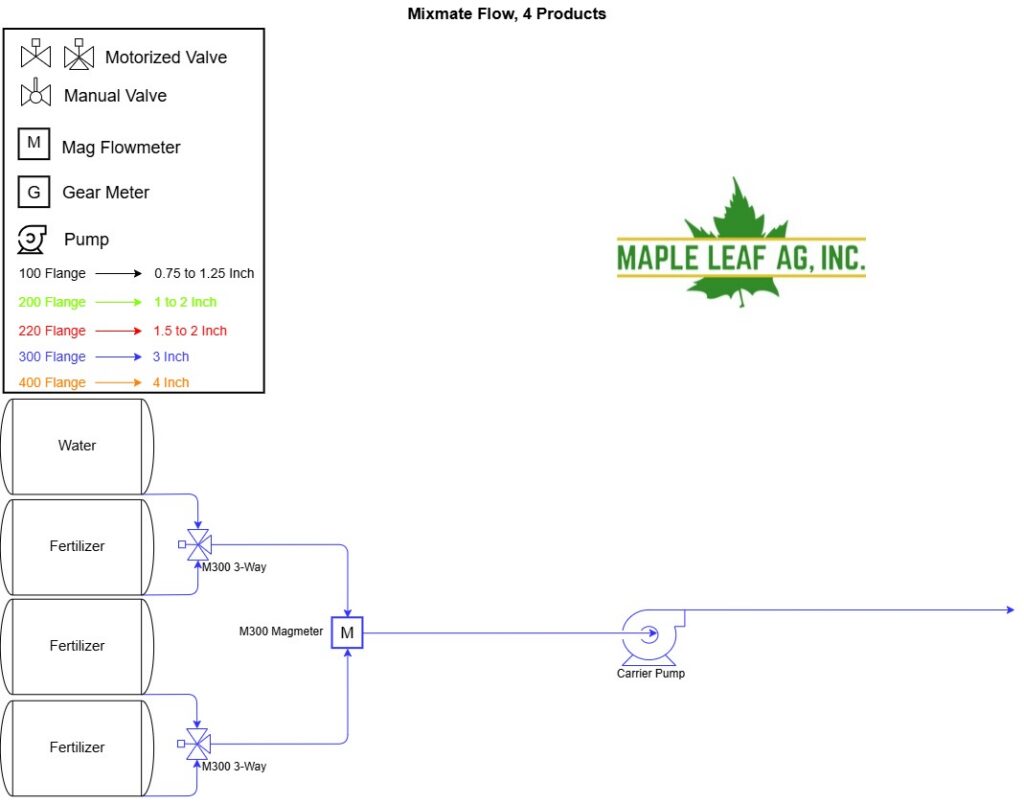

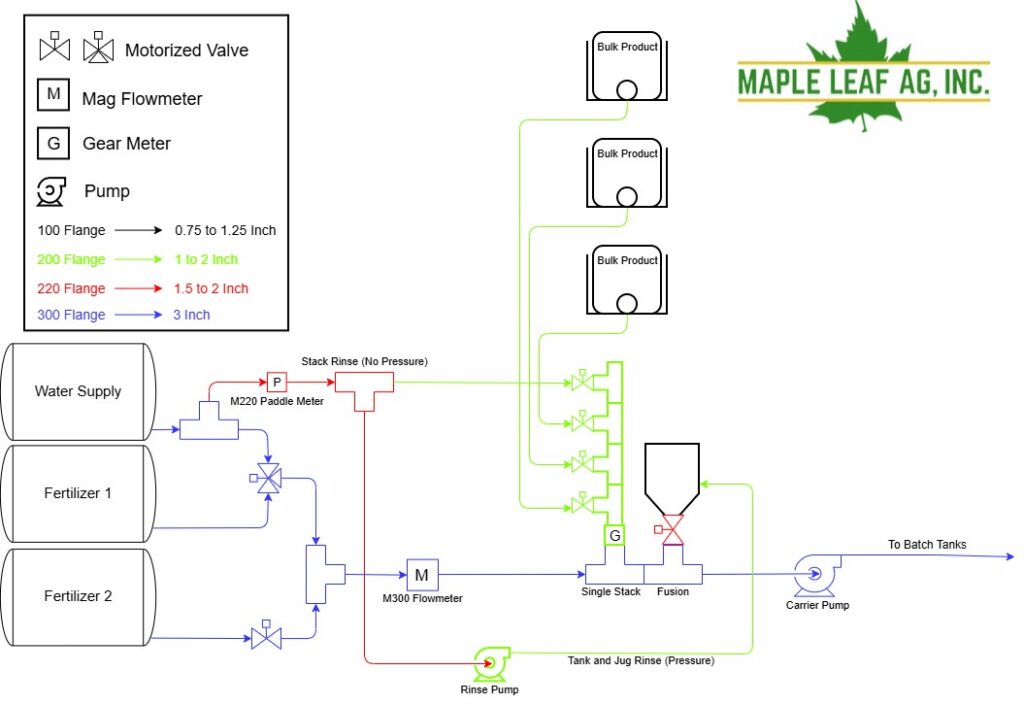

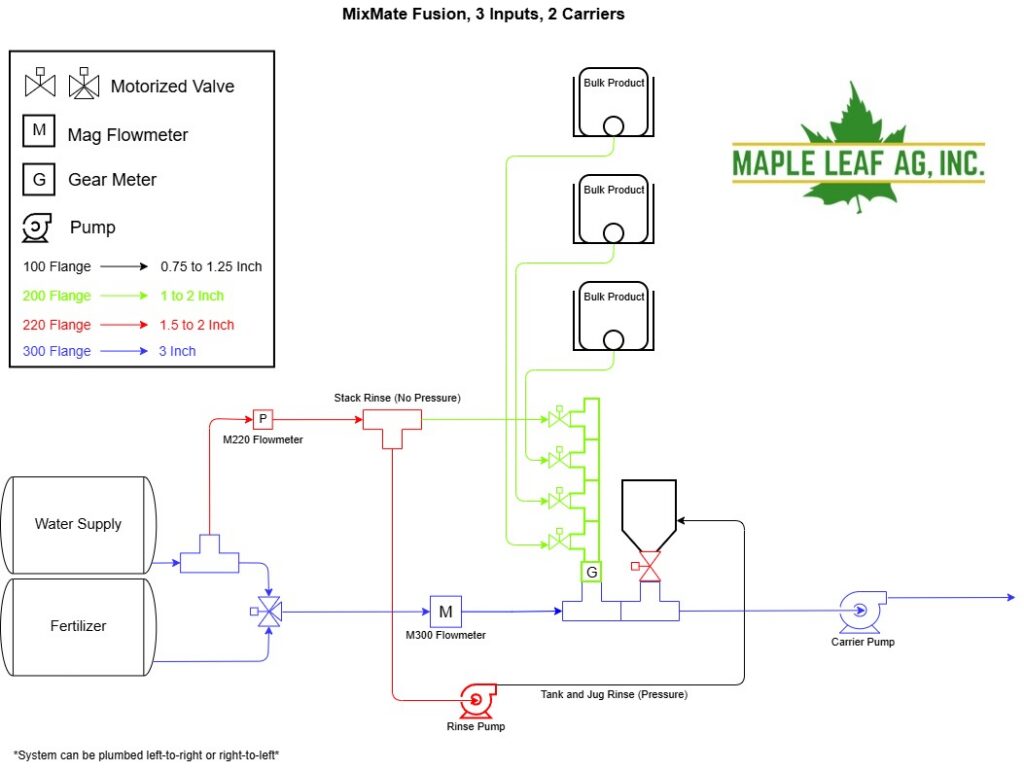

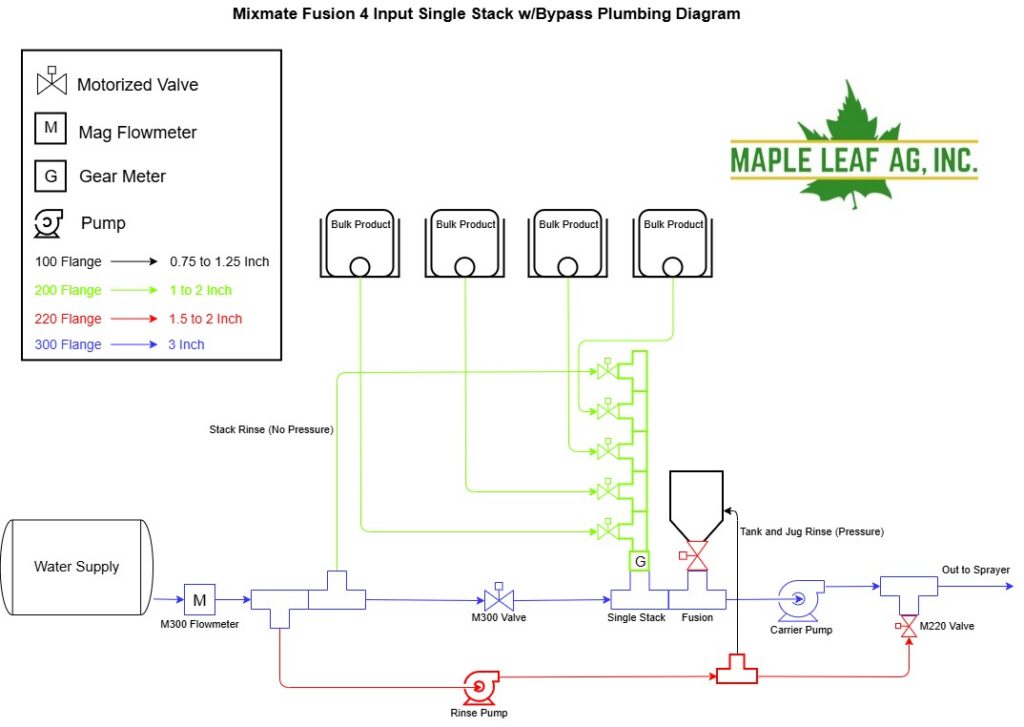

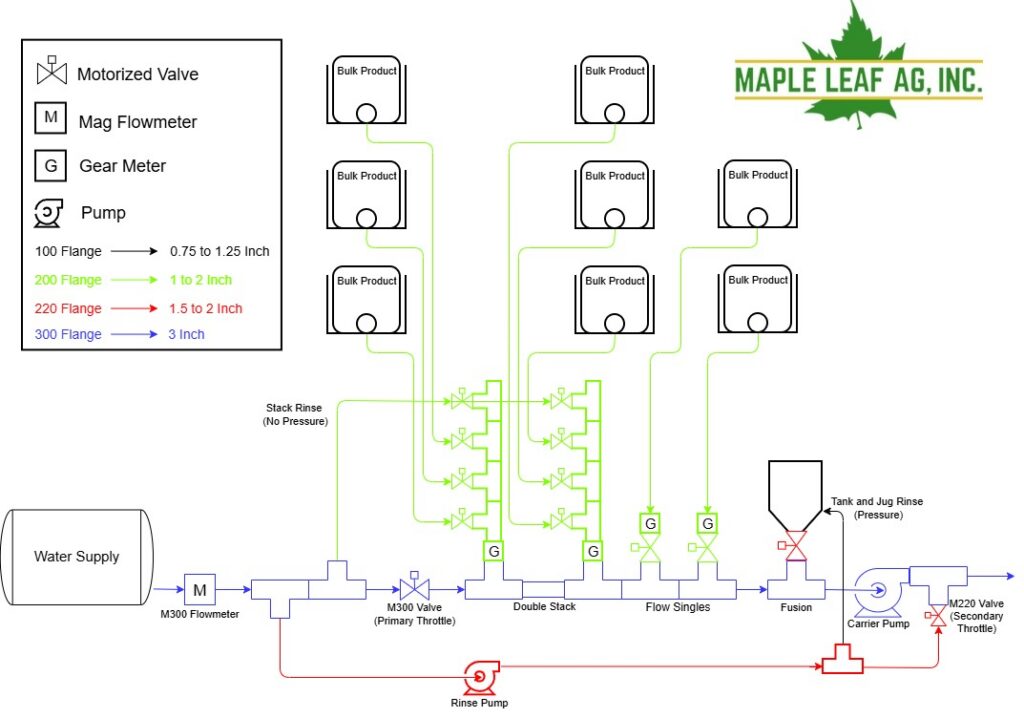

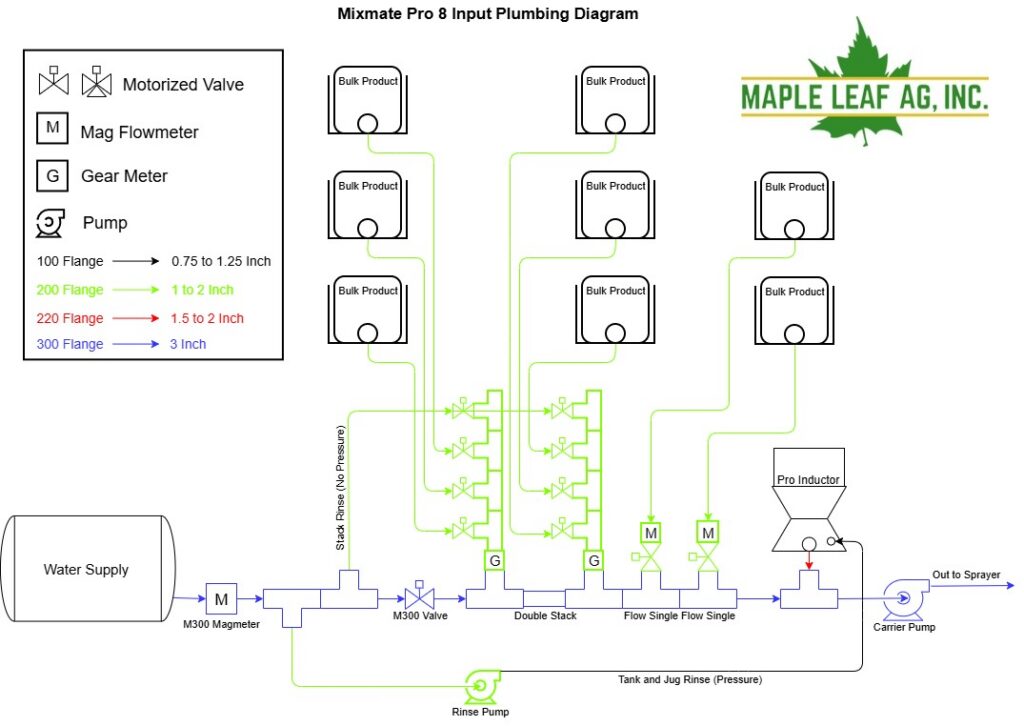

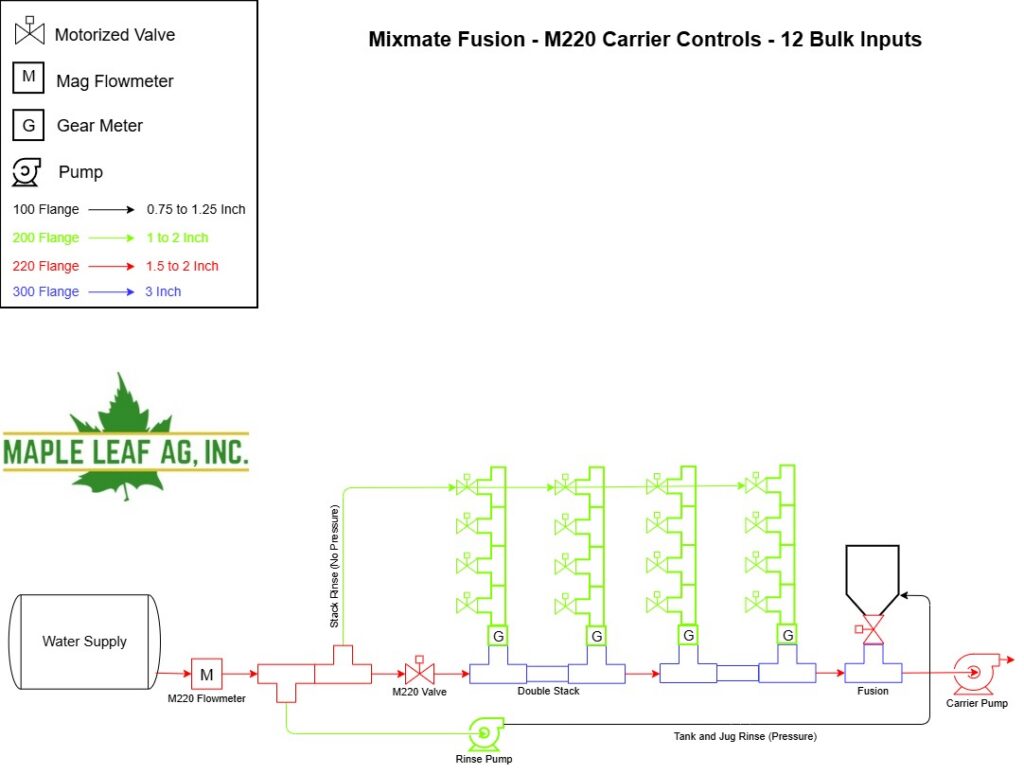

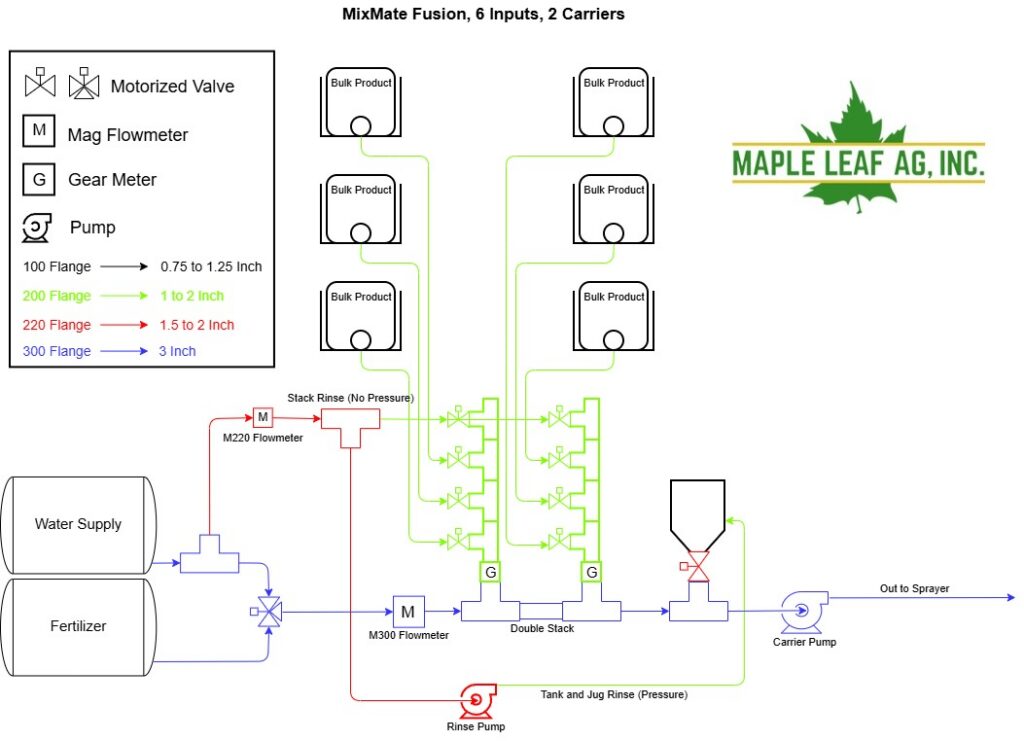

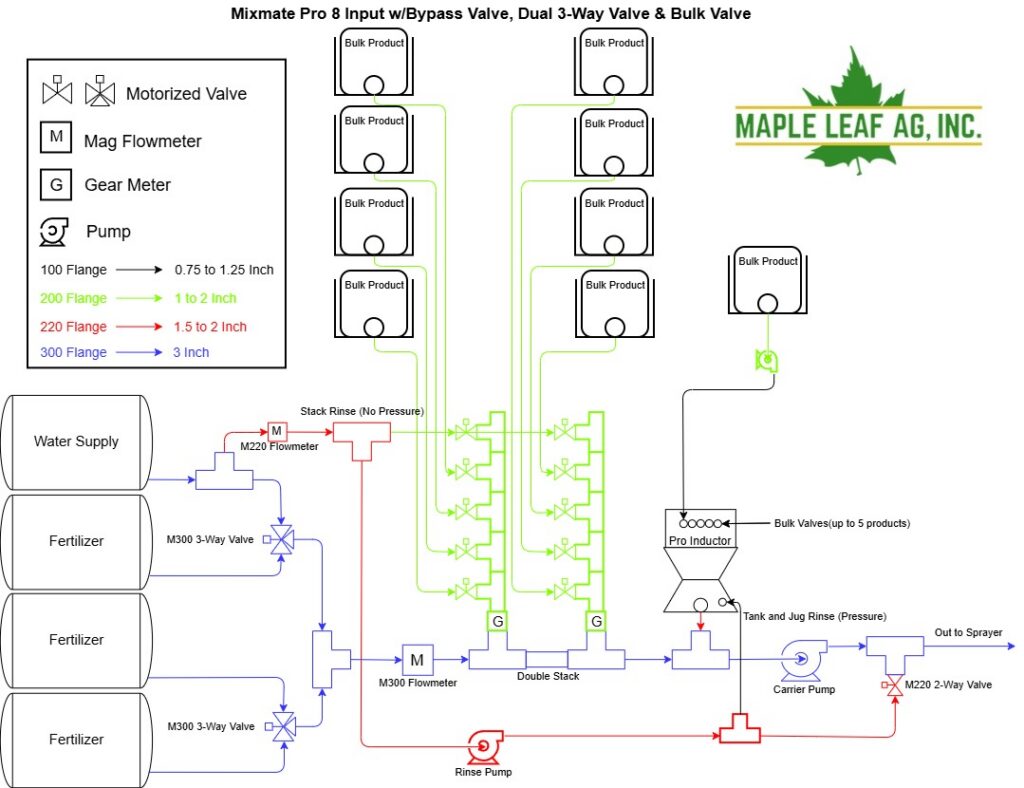

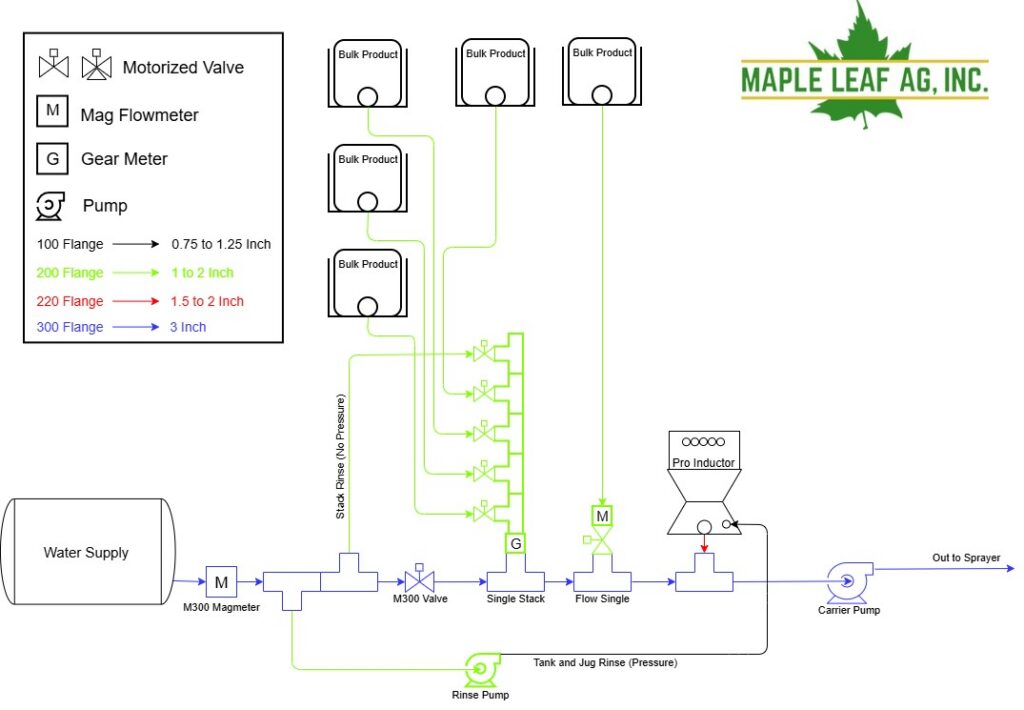

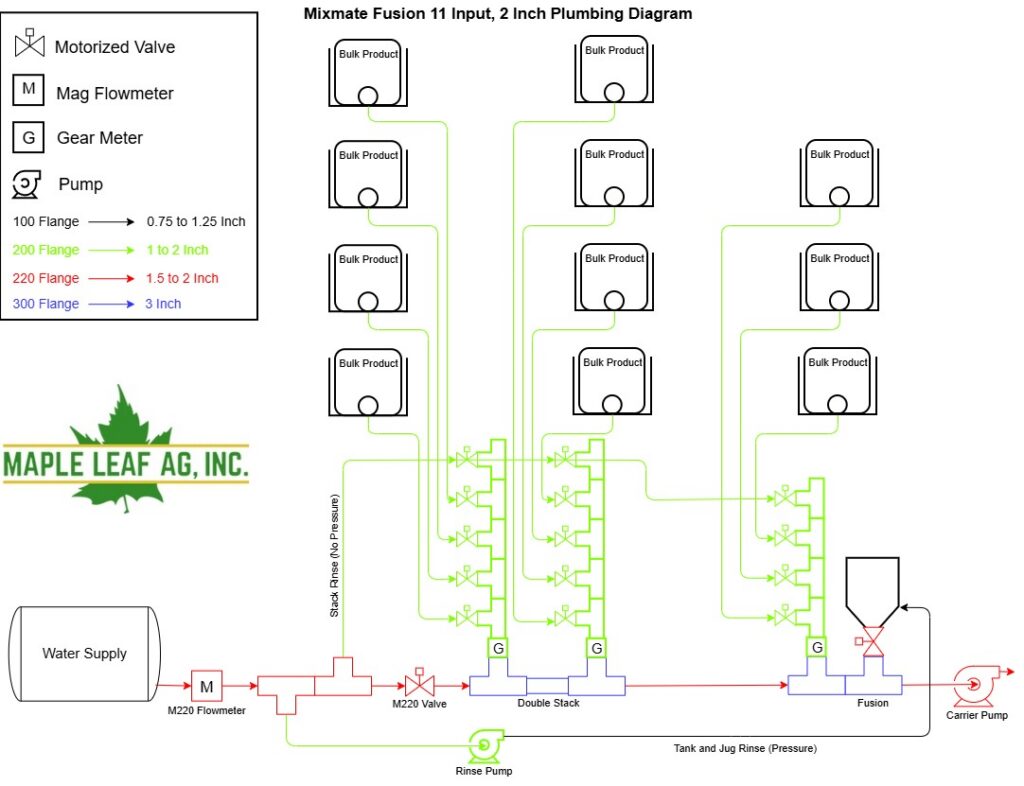

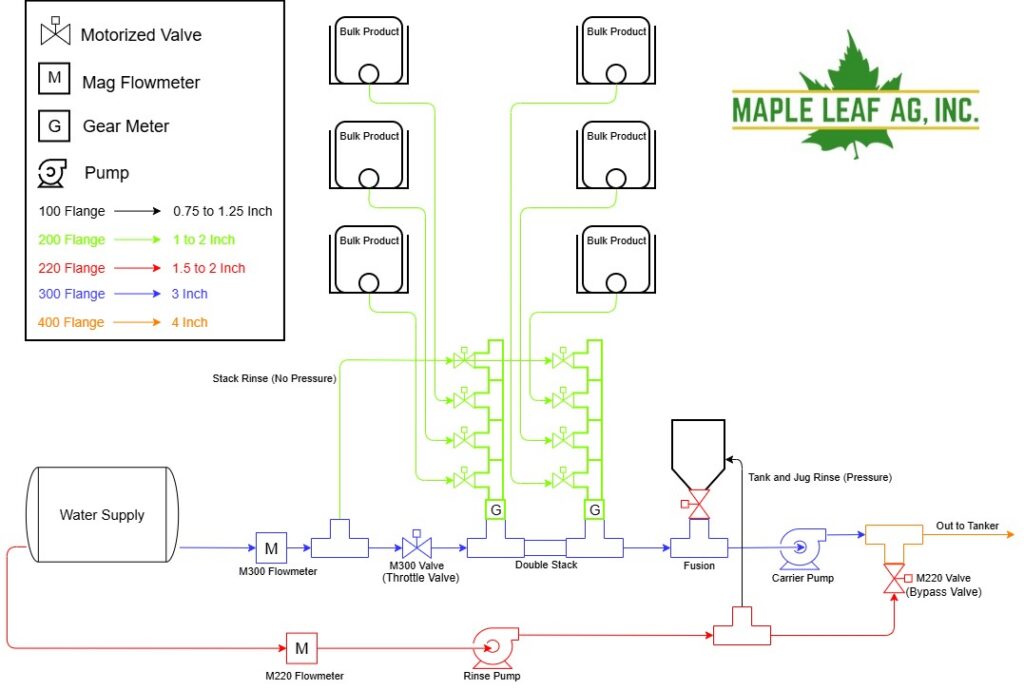

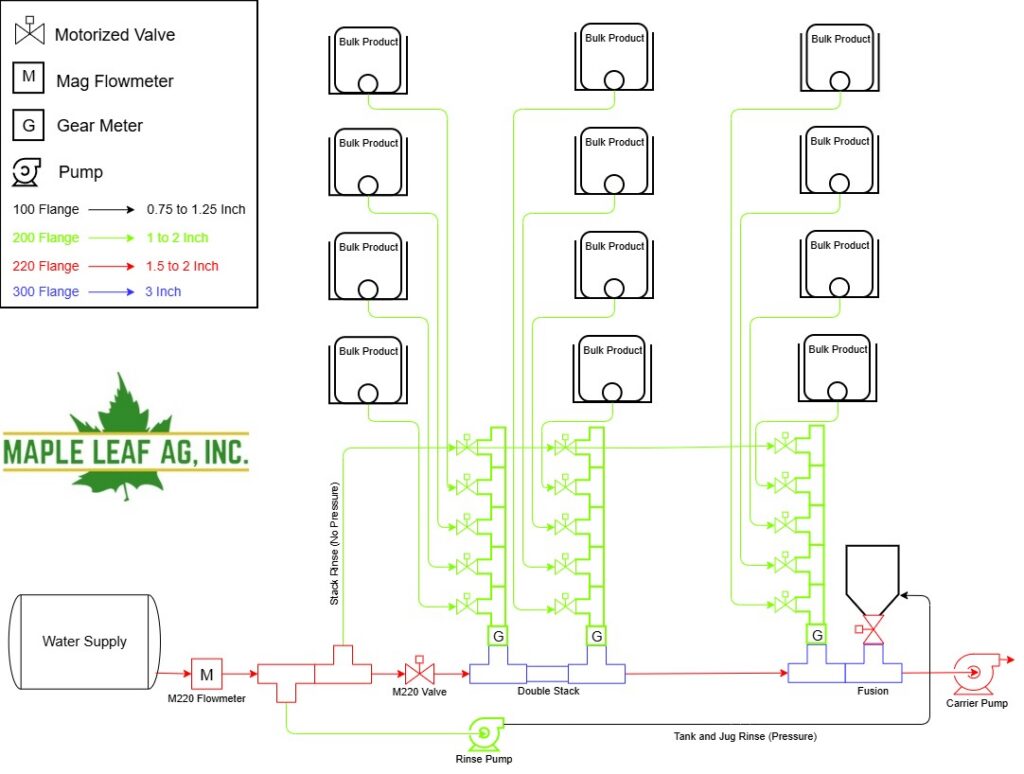

This gallery features plumbing diagrams for Mixmate systems used across a variety of operations. Browse examples of plumbing layouts, component configurations, and system designs to help visualize different installation options.
